Open Frame Solenoid

ID:Open Frame Solenoids

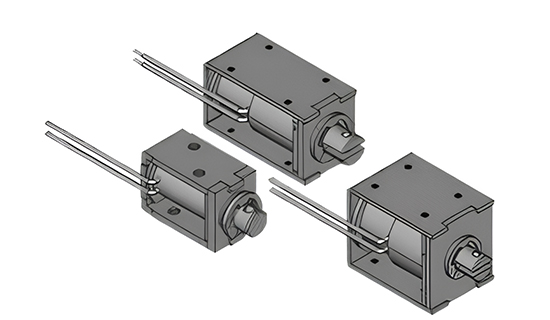

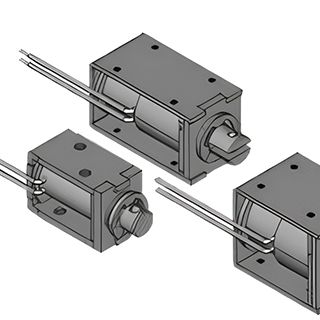

The simplest and most popular Solenoid type. Available in mechanical pull (L) or push (S) type with nominal voltage range between 3-48V. By inputting currents to the coil, the plunger will be activate for pulling or pushing the contact part.
Application: Electronic Locks, Electrical Appliances, Fitness equipments, Vehicle components, etc.
Share:



Model# Dimension Type Duty Cycle / Power Download
SH-0415 (W)8x(H)10x(L)15mm, Ø4  Push , Pull 100% 0.8W
SH-0415 DATA


50% 1.6W
25% 3.2W
10% 8W
SH-0421 (W)10x(H)11x(L)21.4mm, Ø4  Push , Pull 100% 1.1W SH-0421 DATA
50% 2.2W
25% 4.4W
10% 11W
SH-0520 (W)13x(H)16x(L)20mm, Ø5  Push , Pull 100% 1.6W SH-0520 DATA
50% 3.2W
25% 6.4W
10% 16W
SH-0521 (W)10.7x(H)12.45x(L)20.7mm, Ø5  Push , Pull 100% 1.2W
50% 2.4W
25% 4.8W
10% 12W
SH-0530 (W)10x(H)15x(L)30.5mm, Ø5 Push , Pull 100% 1.8W SH-0530 DATA
50% 3.4W
25% 6.8W
10% 17W
SH-0626 (W)16x(H)20x(L)26mm, Ø6 Push , Pull 100% 2.1W SH-0626 DATA
50% 4.2W
25% 8.4W
10% 21W
SH-0630 (W)16x(H)19x(L)29.5mm, Ø6 Push , Pull 100% 2.4W SH-0630 DATA
50% 4.8W
25% 9.6W
10% 24W
SH-0730 (W)14x(H)16x(L)30.2mm, Ø7 Push , Pull 100% 2.2W SH-0730 DATA
50% 4.4W
25% 8.8W
10% 22W
SH-0826 (W)22x(H)25x(L)25.7mm, Ø8 Push , Pull 100% 2.8W SH-0826 DATA
50% 5.6W
25% 11.2W
10% 28W
SH-0837 (W)20x(H)26x(L)37mm, Ø8 Push , Pull 100% 4W SH-0837 DATA
50% 8W
25% 16W
10% 40W
SH-1037 (W)20x(H)26x(L)37mm, Ø10 Push , Pull 100% 4W SH-1037 DATA
50% 8W
25% 16W
10% 40W
SH-1039 (W)20x(H)26x(L)39mm, Ø10 Push , Pull 100% 3.8W SH-1039 DATA
50% 7.6W
25% 15.2W
10% 38W
SH-1040 (W)24x(H)29x(L)40mm, Ø10 Push , Pull 100% 4.2W SH-1040 DATA
50% 8.4W
25% 16.8W
10% 42W
SH-1245 (W)28x(H)33x(L)45mm, Ø12 Push , Pull 100% 5.5W SH-1245 DATA
50% 11W
25% 22W
10% 55W
SH-1250 (W)37x(H)41x(L)51mm, Ø12 Push , Pull 100% 7.5W SH-1250 DATA
50% 15W
25% 30W
10% 75W
SH-1253 (W)27x(H)30x(L)53.5mm, Ø12 Push , Pull 100% 6W SH-1253 DATA
50% 12W
25% 24W
10% 60W
SH-1550 (W)37x(H)41x(L)50mm, Ø15 Push , Pull 100% 9W SH-1550 DATA
50% 18W
25% 36W
10% 90W
SH-1564 (W)30x(H)38x(L)64.3mm, Ø15 Push , Pull 100% 8W SH-1564 DATA
50% 16W
25% 32W
10% 80W
SH-1578 (W)44x(H)51x(L)78mm, Ø15 Push , Pull 100% 13W SH-1578 DATA
50% 26W
25% 52W
10% 130W
SH-1585 (W)35x(H)40x(L)85mm, Ø15 Push , Pull 100% 12.7W SH-1585 DATA
50% 25.4W
25% 50.8W
10% 127W
SH-1683 (W)52x(H)58.2x(L)84mm, Ø16 Push , Pull 100% 16W SH-1683 DATA
50% 32W
25% 64W
10% 160W
